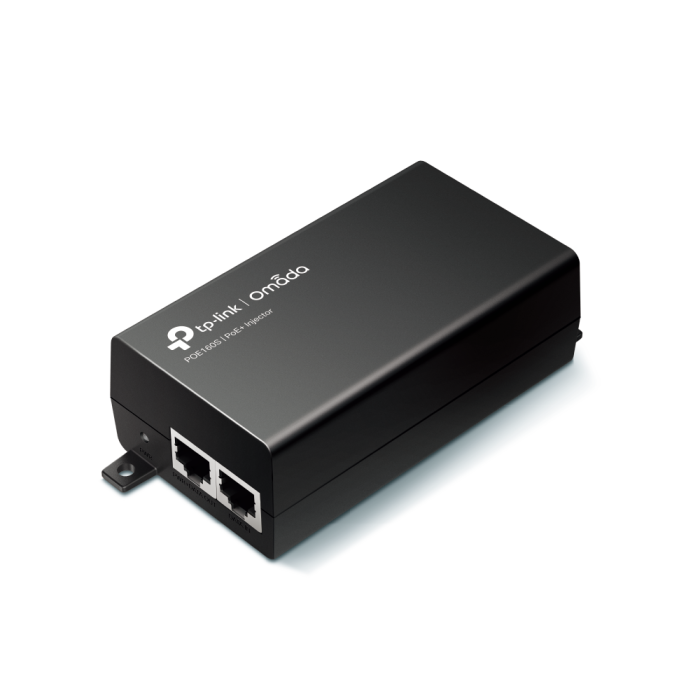

TP-Link TL-POE160S PoE+ Injector. 30W. 48V
SKU
NETTPLTLPOE160S
€17.50
TL-POE160S PoE+ Injector
-
2 Gigabit ports ensure faster transmission
-
Complies with IEEE802.3af/at standards, supplies up to 30 W
-
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
-
Automatically determines and supplies the exact power to meet the device's need
-
Wall-mounting and desktop design accommodates most installation scenarios
-
Plug & Play installation, requires no configuration
-
Integrated power supply
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| Interface | • 1 10/100/1000Mbps RJ45 data-in port • 1 10/100/1000Mbps RJ45 power+data-out port • 1 AC socket |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Max. Power Consumption | • Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | Power / PoE |
| Dimensions ( W x D x H ) | 4.9×2.3×1.4 in (125×59.4×36.8 mm) |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • POE160S • Installation Guide • Power Cord • Wall Mounting Kits |
| Environment | • Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
| SKU | NETTPLTLPOE160S |
|---|---|
| Manufacturer SKU | TL-POE160S |
| In Store | 3 |
| Total Stock | 3 |
