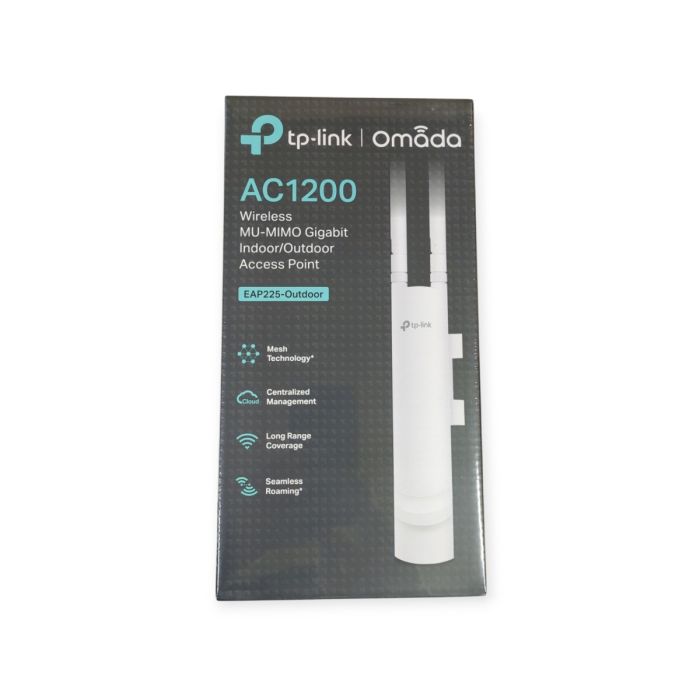

TP-Link EAP225 Outdoor AC1200 CPE Access Point

SKU

NETTPLEAP225-OUTDOOR

€98.33

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps¹ with 2×2 MIMO technology
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
High transmission power and high gain antennas provide a long-range coverage area
Cloud centralized management and Omada app for ultra convenience and easy management
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS authentication help to boost your business
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES
Interface	1x Gigabit Ethernet RJ-45 port
Button	Reset
Power Supply	802.3af PoE and 24 Passive PoE(PoE injector included)
Max. Power Consumption	10.5W
Dimensions ( W x D x H )	8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna	2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi
Weatherproof Enclosure	IP65
Mounting	Pole/Wall mount (mounting kit included)

WIRELESS FEATURES
Concurrent Clients	220+^**
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz, 5GHz
Signal Rate	802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support
Transmission Power	• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
