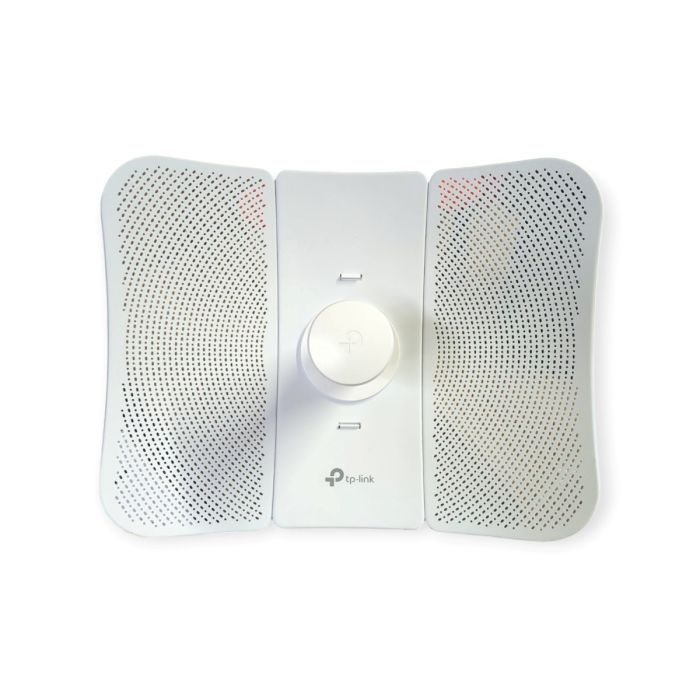

TP-Link CPE710 Outdoor CPE Access Point
SKU
NETTPLCPE710
€78.75
-
802.11ac for up to 867Mbps on 5GHz wireless data rate
-
23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
-
Excellent beam directivity, improved latency and noise cancellation
-
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
-
Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
-
Pharos Control gives administrators a free, centralized management system
-
Passive PoE supports to allow flexible deployment and convenient installation
Magento Admin Panel
Dashboard
Sales
Catalog
Customers
Marketing
Content
Reports
Decorator Extensions
SM Mega Menu
Magefan
Stores
System
Find Partners & Extensions
Magentech
System Messages: 2
Cron does not appear to be running properly. No jobs have ever completed.
TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
admin99+
Save
Back
Add Attribute
Enable Product
Attribute Set
Product Name
TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
Subtitle
CatId
SKU
NETTPLCPE710
Manufacturer SKU
CPE710
Product ID
Product ID Type
Item Code
Manufacturer
TP-Link
Categories
New Category
Product Category
Price
78.75
€
Advanced Pricing
Retail Price
Tax Class
Taxable Goods
Quantity
11
Advanced Inventory
In Store
11
Channel Stock
Total Stock
11
Weight
0.4
kgs
This item has weight
Visibility
Catalog, Search
Country of Manufacture
China
Is Featured?
Is Bestseller?
Is Featured
Color
Call For Price
Inherit from Category/Rule
When the "Inherit from Category/Rule" option is picked, call for price rules applied for the product will follow the configuration of the current category which the product belongs to
Content
Short Description
Show / Hide EditorInsert Widget...Insert Image...Insert Variable...
Advanced
Alignment
Default Left Center Right
Border
Default
Border Color
No Color
Border Width
Default
px
Border Radius
Default
px
CSS Classes
Space separated list of classes.
Margins and Padding
Margin
Default
Default
Default
Default
Padding
Default
Default
Default
Default
-
802.11ac for up to 867Mbps on 5GHz wireless data rate
-
23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
-
Excellent beam directivity, improved latency and noise cancellation
-
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
-
Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
-
Pharos Control gives administrators a free, centralized management system
-
Passive PoE supports to allow flexible deployment and convenient installation
Related Products
| Model | CPE710 | CPE510 | CPE210 |
|---|---|---|---|
| Wireless Performance | |||
| Wireless Speed | 5GHz 867Mbps | 5GHz 300Mbps | 2.4GHz 300Mbps |
| Transmit Power | 27dBm | 26dBm | 25dBm |
| MIMO | 2 x 2 | 2 x 2 | 2 x 2 |
| Hardware | |||
| Compatibility | 802.11a/n/ac | 802.11a/n | 802.11b/g/n |
| Antenna Gain | 23dBi | 13dBi | 9dBi |
| Weatherproof Enclosure | IP65 | IPX5 | IPX5 |
| Lightning Protection | 6kV | 6kV | 6kV |
| Power Supply | 24V Passive PoE Adapter | 24V Passive PoE Adapter | 24V Passive PoE Adapter |
| Software | |||
| Operation Modes | AP / Client / AP Client Router (WISP Client) / AP Router Mode | ||
| Channel Bandwidth | 20/40/80MHz | 5/10/20/40MHz | 5/10/20/40MHz |
| Transmit Power Control | Stepping 1dBm | Stepping 1dBm | Stepping 1dBm |
| MAXtream TDMA Mode | - | √ | √ |
| Throughput Monitors | √ | √ | √ |
| Spectrum Analyzer | √ | √ | √ |
| Iperf Speed Test Tool | √ | √ | √ |
| Pharos Control Supported (Central Network Management Application) |
√ | √ | √ |
| HARDWARE FEATURES | |
|---|---|
| Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| Memory | 128 MB DDR2 RAM, 16 MB Flash |
| Interface | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC |
| Dimensions ( W x D x H ) | 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm) |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth | 9° (Azimuth)/7° (Elevation) |
| Protection | 15 KV ESD Protection 6 KV Lightning Protection |
| Enclosure | Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Speeds | Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) |
| Frequency | 5.15–5.85 GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power | Max. 27 dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
|---|---|
| Network Configuration | WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
| Wireless Configurations | Selectable channel width: 20, 40 or 80MHz Automatic Wi-Fi channel selection RF transmit power adjustment in 1 dB step Dynamic Frequency Selection (DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, SSID broadcast enable/ disable Multi-SSID with VLAN tagging in AP mode Distance/ ACK timeout setting Wireless MAC address filter Wireless advanced features: Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia Long range point-to-point |
| Management Features | Discovery and Remote Management with Pharos Control (Windows) HTTP/ HTTPS Web-based management System log SNMP agent (v2c) Ping watchdog Dynamic DNS SSH server |
| System Tools | Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment |
| System-level Optimizations | Optimized IGMP Snooping / Proxy for multicast applications |
| POE ADAPTER FEATURES | |
|---|---|
| Dimensions(W x D x H) | 3.3 x 1.7 x 1.2 in. (85 × 44 × 30 mm) |
| Interfaces | 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | > 84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IP65 |
| Package Content | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide |
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| SKU | NETTPLCPE710 |
|---|---|
| Manufacturer SKU | CPE710 |
| In Store | 11 |
| Total Stock | 11 |
