Ubiquiti Lite Switch 16 PoE
SKU
NETUUSWLITE16POE
€195.00

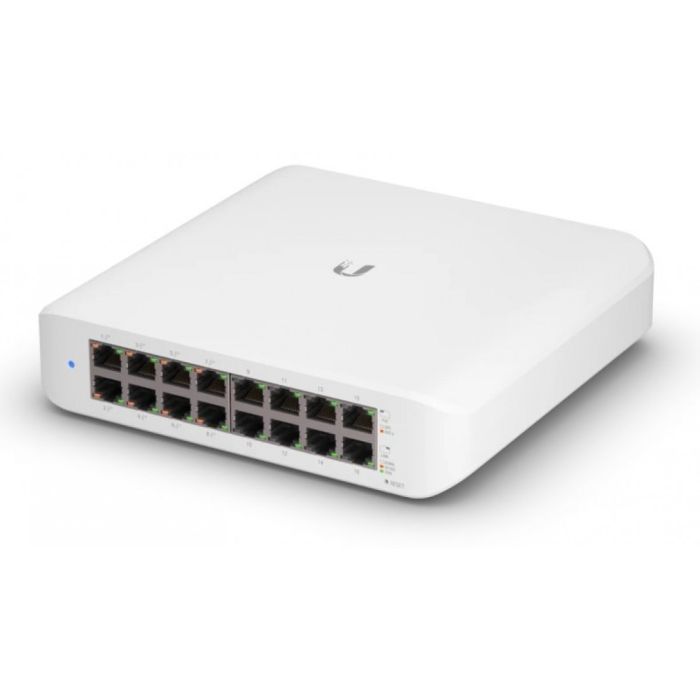

Ubiquiti Unifi Switch Usw-lite-16-poe (USW-Lite-16-PoE)
-
USW-Lite-16-PoE is a Gigabit PoE L2 Switch in a desktop or wall mount design with a maximum PoE budget of 45W.
-
A manageable switch with 16 Gigabit metal ports and a total throughput of 16 Gbps.
-
Only 8 ports of 16 support PoE+ powering 802.3af/at with a maximum power of 30W/port.
-
Due to its low PoE budget, the switch is more suitable as a data device with power to a few devices on the network.
-
Management via UniFi Controller.
Package contains
-
Device
-
Power cord
| Dimensions |
| 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
| Port Layout |
| 1 GbE RJ45 |
| 16 (8 PoE+) (1G/100M/10M) |
| Max. PoE Output |
| Up to PoE+ |
| Total PoE Availability |
| 45W |
| Form Factor |
| Compact desktop, wall |
| Performance |
| Switching Capacity |
| 32 Gbps |
| Total Non-Blocking Throughput |
| 16 Gbps |
| Forwarding Rate |
| 24 Mpps |
| Supported VLANs |
| 1,000 |
| MAC Address Table Size |
| 8,000 |
| Packet Buffer Size |
| 0.5 MB |
| Hardware |
| PoE Ports |
| PoE+ |
| 8 |
| Max. PoE Wattage per Port by PSE |
| PoE+ |
| 32W |
| Max. Power Consumption |
|
15W (Excluding PoE Output) 60W (Including PoE Output)
|
| Power Method |
| Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method |
| AC input |
| Power Supply |
| AC/DC, internal, 60W |
| Supported Voltage Range |
| 100—240V AC |
| Management |
| Ethernet |
| Heat Dissipation (Excluding PoE Output) |
| 51.18 BTU/hr |
| Weight |
| 1.2 kg (2.6 lb) |
| Enclosure Material |
| Polycarbonate |
| Mount Material |
| Polycarbonate |
| Supported Rack Depth |
| 400~1200 mm (15.7-47.2") |
| Ambient Operating Temperature |
| -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity |
| 10 to 90% noncondensing |
| NDAA Compliant |
| ✓ |
| Certifications |
| CE, FCC, IC |
| Software |
| UniFi Network |
| Version 7.2.94 and later |
| SKU | NETUUSWLITE16POE |
|---|---|
| Manufacturer SKU | USW-Lite-16-PoE |
