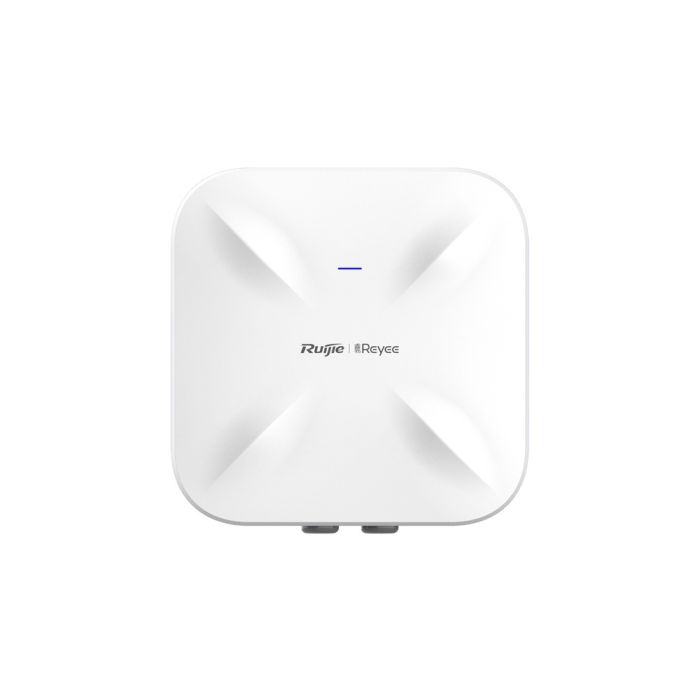

Ruijie/Reyee Wi-Fi 6 AX1800 Outdoor Access Point. SFP Port, Cloud Managed
SKU
NETRG-RAP6260(G)
€251.25
-
The device supports 802.3at PoE In power supply.
-
Concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G.
-
RG-RAP6260(G) supports Reyee Mesh, which allows users easily expand extra Wi-Fi in outdoor place. Less wiring, more relaxing.
-
IP68 protection on the outer shell design.
Ruijie/Reyee Wi-Fi 6 AX1800 Outdoor Access Point. SFP Port, Cloud Managed
| Technical Specification | Specification Description |
| Model | RG-RAP6260(G) |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11a/b/g/n/ac/ax |
| Operating Bands | 802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific) |
| Antenna | Internal antennas (2.4GHz: 4dBi，5GHz: 6dBi) |
| Spatial Streams | 2.4 GHz 2x2 MU-MIMO 5 GHz 2x2 MU-MIMO |
| Max Throughput | Up to 574Mbps at 2.4GHz Up to 1201Mbps at 5GHz Totally 1775Mbps per AP |
| Modulation | DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM |
| Receive Sensitivity |
11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)
11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） 11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11） |
| Maximum Output Power of the Transmitter (Single Stream) |
2.4GHz(2.4~2.4835GHz)：26dBm 5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm （country-specific，comply with local laws） |
| Adjustable Power | 1dBm |
| Dimensions | 298mm×298mm×65mm (excluding mounting kits) |
| Weight | ≤1.35kg (excluding mounting kits) |
| Service Ports | 1 10/100/1000 Base-T Ethernet port supports PoE IN； 1 100/1000 Base-X SFP Port |
| Management Port | N/A |
| LED Indicator | Single indicator (Blue light) |
| Power Supply |
802.3at PoE
(Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
| Power Consumption | ≤17W |
| Bluetooth | Support |
|
Environment
|
Operating Temperature：-40°C～65°C |
| Storage Temperature：-40°C～85°C | |
| Operating humidity：0%～100%, non-condensing | |
| Storage humidity：0%～100%，condensing/non-condensing | |
| Installation | Pole/Wall-Mountable |
| Safety Standard | GB4943、IEC 60950-1 |
| EMC Standard | GB9254、EN301 489，EN50155：EN50121 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328，EN301 893 |
| MTBF | >400000H |
|
WLAN
|
Maximum number of clients: 512 |
| Recommended number of clients: 100 | |
| Up to 8 SSID | |
|
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
|
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Support Reyee Mesh | |
| Roaming | Support layer 2 and layer 3 roaming |
|
Security
|
Support PSK authentication |
| Support static blacklist and whitelist | |
| Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption | |
| Routing | Support static IP address, DHCP, PPPoE Dial |
| Management and Maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud APP Support local management with web Support remote management with Ruijie Noc Cloud platform |
|
Platform Management Features
|
Automatic RF adjustment via the platform |
| Unified configuration via the platform | |
| Unified monitoring via the platform |
| SKU | NETRG-RAP6260(G) |
|---|---|
| Manufacturer SKU | RG-RAP6260(G) |
| In Store | 2 |
| Total Stock | 2 |
