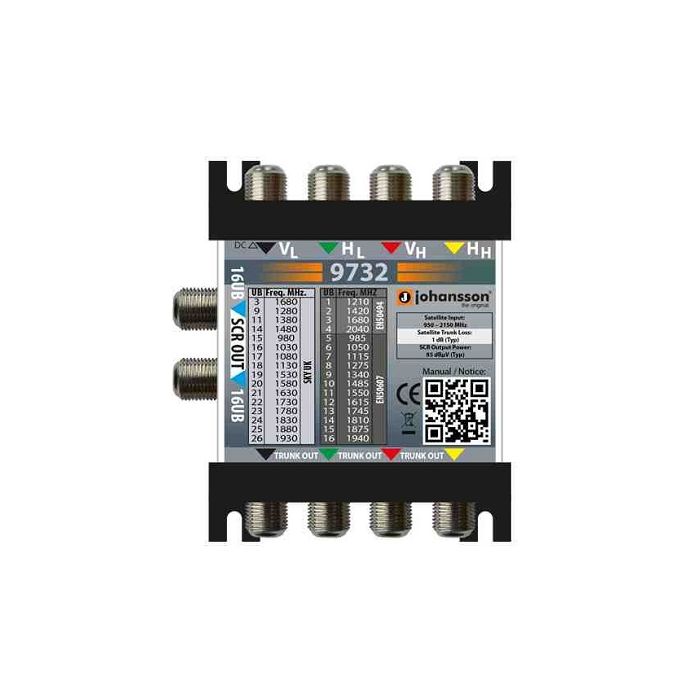

Johansson 9732 - DSCR Multiswitch 2 Outputs
.jpg)
SKU
AEJOH9732#
€56.56
4 satellite inputs, 4 satellite trunk outputs, 2 outputs with each 16 User Bands
- up to 16 UBs per SCR Output
- supports all SCR standards
- ultra compact housing
- trunk output for cascading multiple products
-
available for different operator user bands:
- 9732MC (MultiChoice)
- 9732SK (Sky)
| 9732 | ||
|---|---|---|
| Trunk inputs | - | 4 |
| Trunk outputs | - | 4 |
| Frequency | MHz | 950 - 2150 |
| Trunk loss | dB | 1 |
| dCSS/dSCR outputs | - | 2 |
| dCSS/dSCR output connector | - | 75 Ohm F type (Female) |
| dCSS/dSCR UBs | - | 16+16 |
| dCSS/dSCR output level | dBµV | 85 |
| Return loss | dB | >=8 (Typ 12) |
| Tap loss | - | Not applicable, AGC (automatic gain control) |
| Band and polarity selection | - |
DiSEqC 1.0 (unidirectional) DiSEqC 2.0 (bidirectional) Standard EN 50494 (SCD) Standard EN 50607 (SCD 2) |
| Max DC current consumption | - | < 320mA @ 13 Volt |
| Power supply | - | From STB, power inserter or trunk (VL) |
| Power (2460+9669 available separately) | - | 3A max, 20V |
| SKU | AEJOH9732# |
|---|---|
| In Store | 4 |
| Total Stock | 4 |
