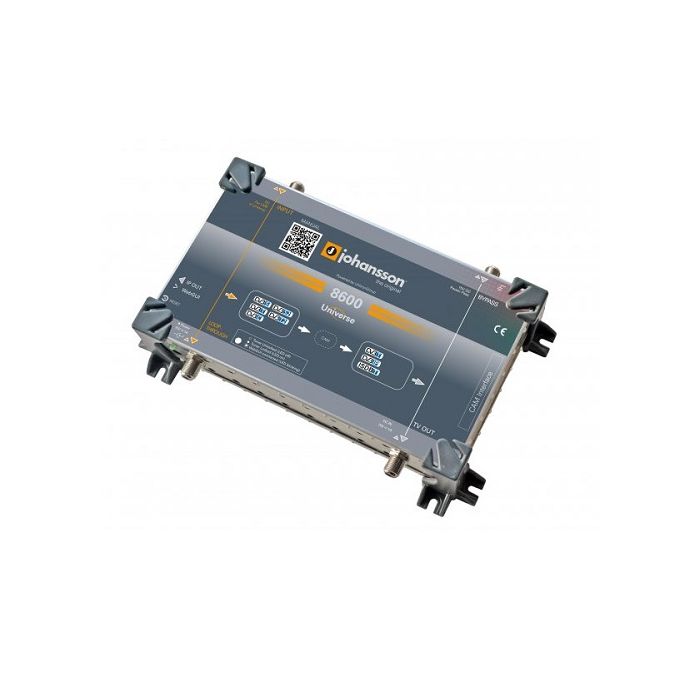

Johansson 8600 Universal Compact headend & Universal Transmodulator

Receives one transponder from any DVB source (satellite, terrestrial or cable)

SKU

AEJOH8600#

Receives 1 transponder from any DVB source (satellite, terrestrial or cable)
Decrypts the PayTV channels, when a professional CAM is inserted
Puts the demodulated transponder on your private coaxial and IP network
Can work standalone to insert channels in your existing network
More products can be combined to a make a complete headend:
- Cascadable inputs and outputs
- Remote powering capabilities
Compatible with SD and HD, with MPEG2 and MPEG4
Perfect picture quality thanks to a MER, comparable to premium headend equipment
Plug&Play thanks to a built-in WebGUI

INPUT
Number of inputs	-	1 with passive loop-through (-2dB)
Tuner	-	1
Frequency range	MHz	42-2150
Input level	dBm	-65 to -20
Standard		DVB-S/S2 DVB-T/T2 DVB-C
DC remote power for LNB or LNA	V mA	0/13/18/22kHz/DiSEqC, EN50494, EN50607 350
RF OUTPUT
Number of outputs	-	1 RF with passive loop-through (-2 dB)
Multiplex	-	1
Frequency range	MHz	174-862
Output level	dBm	-45 to -20 (adjustable)
Standard	-	DVB-T ISDB-T*
Modulation error rate (MER)	dB	40
ETHERNET OUTPUT
Number of outputs	-	1 Gb Ethernet
Standard	-	IEEE 802.3ab 10/100/1000 Base-T
Protocol	-	Multicast IP/UDP
GENERAL
CI slot	-	1
Input voltage	VDC	12-20
Power consumption	W	7 (without CAM and without remote power)
DC jack	mm	Ø 2.1
Powering remote units	-	Yes, 1 unit can power other units
Operating temperature	°C	0 to +50
Dimensions	mm	222x142x50
Weight	kg	1.1
Accessories	-	15V power adapter, 1 Ethernet cable

* coming soon
