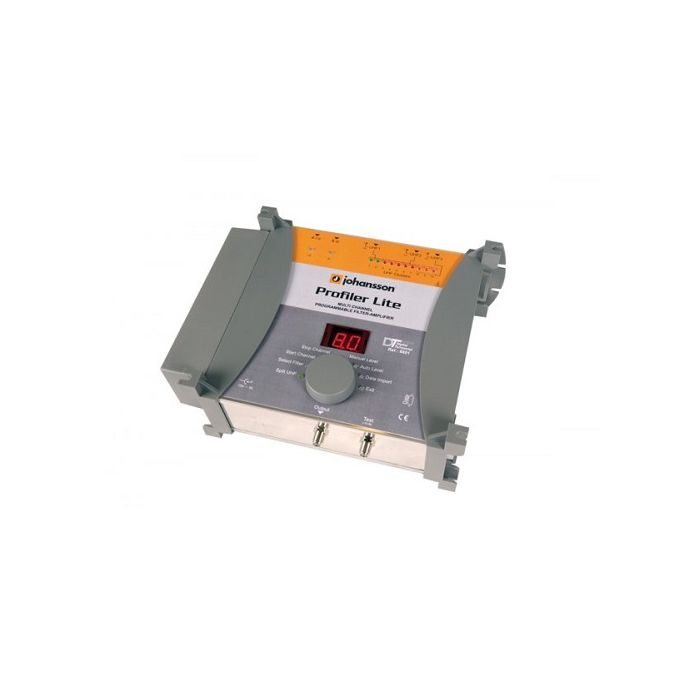

Johansson 6606 Profiler Lite 8
4 inputs: BI-FM / B III / 2 x UHF
SKU
AEJOH6606##
Programmable filter amplifier Lite: 4 inputs: BI-FM / BIII / 2 x UHF 8 clusters / 24V remote power
The Profiler Lite devices are a slimmed down version of the basic 6600 Profiler, offering the same flexibility, but a lower gain, less filter clusters and a lower number of inputs. These are ideal for smaller buildings, where the high gain of the 6600 Profiler is not needed.
- 4 inputs: BI-FM / B III / 2 x UHF
- 8 UHF filter clusters from 1 to 7 channels bandwidth
- medium gain: 45 dB
- 24V remote power on UHF inputs
- VHF-UHF split band amplifier with inter-stage attenuators
- -30 dB test output
| 6606 | |||||
|---|---|---|---|---|---|
| Inputs | - | BI-FM | BIII/DAB | UHF1 | UHF2 |
| Frequency range | MHz | 47-108 | 174-240 | 470-862 | |
| Filter bandwidth | - | - | 1-7 Ch. (8-56 MHz) | ||
| Cluster configuration | - | - | 8 | 0 | |
| 7 | 1 | ||||
| 5 | 3 | ||||
| Gain | dB | 35 | 40 | 45 | |
| Gain adjustment | dB | 20 | 20 | 30 | |
| General UHF level adjustment | dB | - | +10 to -9 | ||
| Noise figure | dB | 5 | 5 | 6 | |
| Max. input level | dBµV | 75 | 80 | 105 | |
| Max. output level* | dBµV | 115 | 115 | 110 | |
| Selectivity | dB/Ch±2 | - | 15 | ||
| Return loss | dB | >10 | |||
| LNA remote voltage | V | - | 24 | ||
| LNA remote current | A | - | 100 mA total | ||
| Outputs | - |
1 x TV output 1 x Test output: -30 dB |
|||
| Data transfer | - | DSUB9 connector | |||
| Power supply | - | 230-240 V~ / 15 VDC / 35 VA | |||
| Operating temperature | °C | -5 to +50 | |||
| Dimensions | mm | 265 x 220 x 95 | |||
* Terr.: -60dBc/IM3
