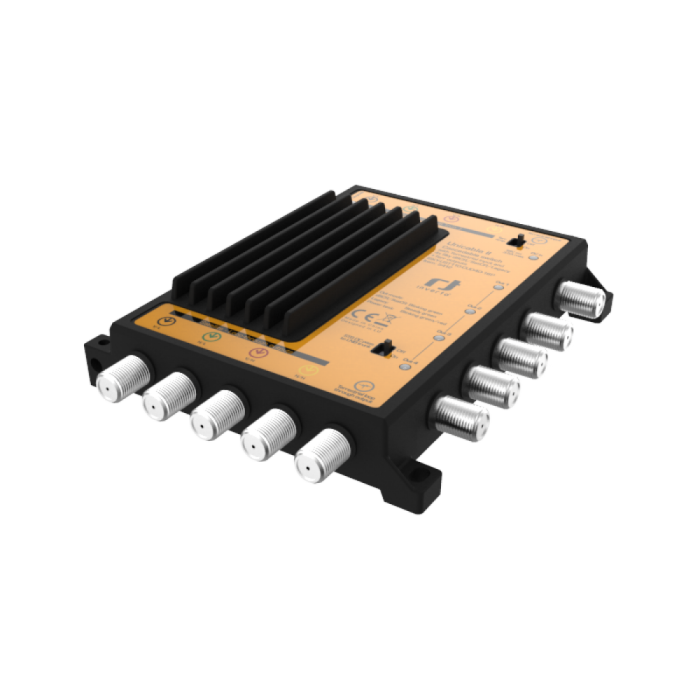

Inverto 4-Way UnicableII Multiswitch for SkyQ
SKU
SATIUST40
The Multiswitch unit connects to a Quattro LNB and offers a terrestrial input port to connect a terrestrial antenna for reception of UHF/DAB/radio broadcasts. The terrestrial signal can be amplified through a dedicated “On/Off” switch and is combined over each of the 4 output ports.
The Multiswitch unit can be powered through a “DC in” port, any of the trunk output lines or from the STB output ports (typically using a Sky power inserter device). In typical cascaded MDU installations, the DC voltage supplied over the DC in or trunk output lines is passed through to the trunk input lines to power the LNB and the “STB DC pass to LNB trunk” switch must be set to “Off”.
To help the installer ensure at the time of installation that the unit’s power supply is sufficient to support a full load in the future, i.e. 4x SkyQ STBs, the Multiswitch features a special power diagnosis test mode that is triggered automatically upon unit startup. During this 15 second test, the Multiswitch will operate in full load and will light the power-diagnosis led in green if the unit is supplied with sufficient power or in amber if not.
A status led, located next to each output port, indicates the operating mode of the port (Legacy=solid green, Sky dSCR=blinking green, Power diagnosis=blinking red/green).
While this Multiswitch is also Receiver Powered A PSU is reccomeneded Link :
| Technical specifications | |
| Frequency range: satellite | 950 MHz ~ 2150 MHz |
| Frequency range: terrestrial | 40 MHz ~ 840 MHz |
| Inputs |
4x Satellite IF inputs from Quattro LNB 1x DTT/DAB/FM input from Terrestrial antenna |
| Outputs |
4x loopthrough satellite IF outputs* 1x loopthrough terrestrial output 4x Sky dSCR (16UBs) / SatCR / Legacy auto-detect ports with combined Terrestrial signal |
| Input power range | -50 dBm ~ -5 dBm |
| Output signal level (AGC) | -25 dBm (83 dBuV) |
| RF isolation: satellite/terretsrial (input) | 25 dB min. |
| RF isolation: satellite/satellite (input) | 25 dB min. |
| RF isolation: satellite ch/ch (UBs, output) | 28 dB min. |
| Loop-through loss: satellite | 4 dB max. (loss) |
| Loop-through loss: terrestrial |
5 dB max. (loss) [amplification=OFF] +12 dB min. (gain) [amplification=ON] |
| Gain: Unicable II™ (dCSS) output (out of AGC) | 25 dB min. |
| Gain: terrestrial signal |
-20 dB [amplification = OFF] -5 dB ~ +5 dB [amplification = ON] |
| Integrated phase noise | 1.5° max. |
| Control protocols |
Sky dSCR (Sky Q), SatCR (Sky+), EN50949, EN50607, DiSEqC 1.x/DiSEqC 2.0, Legacy 13/18 V + 0/22 kHz, |
| Legacy port switching |
V/L => 13 V/0 kHz , V/H => 13 V/22 kHz H/L => 18 V/0 kHz , H/H => 18 V/22 kHz |
| Input/Output impedance | 75 Ω (F-type) |
| LNB power supply | 500 mA max. @18 VDC |
| Power consumption | 600 mA ~ 900 mA @10 VDC ~ 20 VDC max. |
| Working temperature | -20 °C ~ +50 °C |
| IP protection | IP54 |
| Product dimensions (W x D x H) | 15.2 cm x 11 cm x 2.6 cm |
| Weight | 280 g |
| Unicable II™ (dCSS) port specifications | |
| User band (channel) bandwidth | 46 MHz |
| User band (channel) gain ripple | 3 dB max. |
| User band (channel) frequencies | CH3: 1680MHz |
| CH9: 1280MHz | |
| CH11: 1380MHz | |
| CH14: 1480MHz | |
| CH15: 980MHz | |
| CH16: 1030MHz | |
| CH17: 1080MHz | |
| CH18: 1130MHz | |
| CH19: 1530MHz | |
| CH20: 1580MHz | |
| CH21: 1630MHz | |
| CH22: 1730MHz | |
| CH23: 1780MHz | |
| CH24: 1830MHz | |
| CH25: 1880MHz | |
| CH26: 1930MHz | |
| * Unused ports need to be terminated by 75 Ohm DC-blocked terminators | |
